Now fully updated and corrected (20/01/04)
All sizes and weights are approximate!
Contact us at enquiries@eventides.org.uk
Junior | LOD | 13' 6" | ||
LWL | 12' 5" | |||
Beam | 5' 0" | |||
Draught Ex CB | 8" | |||
CB Down | 3' 0" | |||
Sail Area | 100 Sq. Ft. | |||
Weight Ex gear and Crew | 250lb | |||
Designer | Kenneth M. Gibbs | |||
Copies of the drawings available on CD, £10.00 UK and £20.00 overseas | ||||
|
|
|
|
|
Senior | LOD | 16' 0" | ||
LWL | 15' 1/2" | |||
Beam | 6' 1/2" | |||
Draught Ex CB | 10" | |||
CB Down | 3' | |||
Sail area approx. | 120 Sq. Ft. | |||
Total Weight (two crew) | 1,450lb | |||
Designer | Kenneth M. Gibbs | |||
There are two versions, Bilge keel or centre board. both on the CD. | Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | See also the Selway-Fisher advert on the Senior page, for the proper stitch and glue hull. | ||
|
|
|
|
|
Wild Duck | LOD | 19' | ||
LWL | 16' 2" | |||
Beam | 6' 9" | |||
Draught | 3' | |||
Ballast | 1,350ld | |||
Sail Area | 196 Sq. Ft. | |||
Displacement | 4,110 lb | |||
Designer | Alan H. Buchanan | |||
Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | ||||
|
|
|
|
|
3-Tonner | LOD | 20' | ||
LWL | 17' | |||
Beam | 7' 1" | |||
Draught Ex CB | 2' 4" | |||
CB Down | 4' 3" | |||
Draught Keel Model | 3' 6" | |||
H/R Under Mast Beam | 4' 2" | |||
H/R Under Hatch | 4' 6" | |||
Displacement | 2.36 Tons | |||
Designer | Alan H. Buchanan | |||
( gaff rig drawing now added to the CD.) If you just need that sheet and already have the CD contact us... | Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | |||
|
|
|
|
|
Goosander 23' and 27' Versions |
LOD | 22' 9" | 27' | |
LWL | 17' 3" | 22' 6" | ||
Beam | 7' 2" | 8' 9" | ||
Draught | 3' 3" | 4' 3" | ||
Sail Area | 221 Sq. Ft. | 343 Sq Ft. | ||
Ballast | 900 lb | 2400 lb | ||
Displacement | 3000 lb Approx | 7200 lb | ||
Designer | Colin Faggetter | |||
Plans now available, Cost £10.00 UK and £20.00 overseas, to include Royalty. | There is now also a range of other craft from Colin available on CD, for the same prices. | |||
|
|
|
|
|
Eventide
24' and 26' versions |
LOD + (Bowsprit) | 24' + 4' | 26' + 4' | |
LWL | 20' | 22' | ||
L on Deck | 24' | 26' | ||
Beam | 8' | 8' | ||
Draught (Bilge) | 2' 9" | 3' | ||
(steel version included in the CD) | Draught (Fin) | 4' 6" | 4' 6" | |
Sail Area | 216 - 342 Sq. Ft. | 270-448 Sq. Ft | ||
Ballast keel | 1020lb | 1660lb min | ||
Displacement | 4000 lb | 6500 lb | ||
Designer | M. Griffiths | |||
(Included on the CD is a set of conversions suitable for ferro or round bilge.) | Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | |||
|
|
|
|
|
Mouette | LOD | 27' 6" | ||
LWL | 21' 10" | |||
Beam | 8' 2" | |||
Draught | 4' 3" | |||
Sail Area | 449 Sq. Ft. | |||
Displacement | 7,050 lb | |||
Designer | John Rowland | |||
Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | ||||
|
|
|
||
Waterwitch | LOD | 30' | ||
LWL | 26' | |||
Beam (at deck) | 8' 6" | |||
Beam (at chines) | 8' 1" | |||
Draught Mk1 | 3' 3" | |||
We now have the steel drawings included on the CD 2008. | Draught Mk2 | 2' 6" | ||
Displacement Mk1 | 9,500 lb | |||
This design was Bilge keel, MkI, Leeboard, MkII | Thames Measurement | 8 Tons | ||
Ballast (Mk1) | Approx 3300 lb | |||
Also Centre cockpit, ketch or sloop | Ballast (Mk2) | Approx 2000 lb | ||
Sail Area (rig K) | 390 Sq Ft. | |||
Sail Area (rig S) | 41 Sq Ft. | |||
Designer | M. Griffiths | |||
Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | ||||
|
|
|
||
Storm | LOD | 26' | ||
LWL | 23' 3" | |||
Beam | 8' 6" | |||
Draught | 3' 4" | |||
C P Version | 6' 4" | |||
Sail Area (rig S) | 355 Sq. Ft. | |||
Sail Area (rig K) | 385 Sq. Ft. | |||
Ballast | 3000 lb | |||
Thames Measurement | 7 Tons | |||
Displacement | 11,330 lb Approx | |||
Designer | M. Griffiths | |||
Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | ||||
|
|
|
||
Riptide 31 | LOD | 30' 9" | ||
LWL | 26' | |||
Beam | 9' 6" | |||
Draught | 3' 8" | |||
Ballast | 3,810 lb | |||
Displacement | 12,400 lb | |||
Sail Area | 660 Sq Ft. | |||
Designer | M. Griffiths | |||
An
enterprising owner is building in steel, see the builders page of the site. Another member used the spec of the steel WW as a guide and built his in steel too. See WW above. |
Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | |||
|
|
|
||
Barrier Reef 38 built in Ferro. |
LOD | 38' 4" | ||
Also includes timber Good Hope drawings |
LWL | 31' 2" | ||
Beam | 11' | |||
Draught | 5' 3" | |||
Ballast | 8,000 lb | |||
Displacement | 10.5 ton to 14 ton! full cruising gear. | |||
Sail Area | 650 sq ft approx | |||
Designer | M. Griffiths | |||
Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | ||||
|
|
|
||
Tidewater timber construction and Bluewater ferro |
Ferro spec in red |
|||
LOD | 30ft | |||
LWL | 26.2ft | |||
Beam | 9.5ft 9.7ft | |||
Draught | 3.4ft 4.75ft | |||
Ballast | ????? 5780 lb | |||
Displacement | ????? 14,500 lb | |||
Sheet 1 and Sail plan sheet needed to complete set... | Sail Area |
498 sq ft B cutter 514 sq ft G Cutter |
||
Designer | M. Griffiths | |||
Copies of the drawings we have available on CD, £10.00 UK and £20.00. overseas | ||||
|
|
|
||
Golden Hind? 28, 31, 26? Anyone got any drawings we can share... We have a few so far... of the 31. Plus the optional wheelhouse... |
January 2019. We have
generously been donates copies of the drawings for the GH31. Copies of the drawings we have available on CD, £10.00 UK and £20.00. overseas |
|||
|
|
|
||

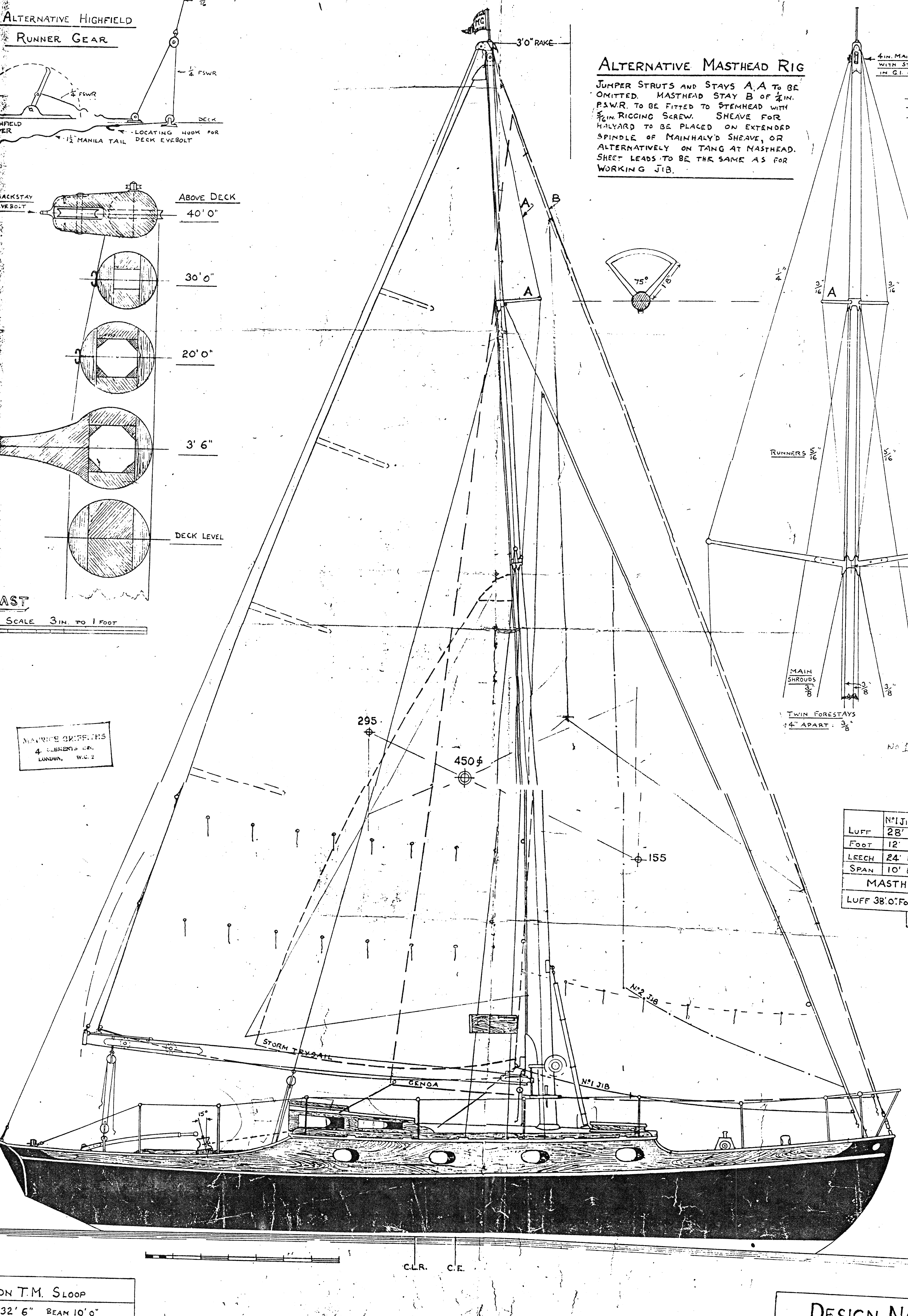

Tinka We now have the drawings of Tinka on CD. |
||||
Thanks to Silvo in Italy for these. | LOA | 32' 6" | ||
LWL | 2' 9" | |||
Beam | 10' | |||
Draught | 5' 8" | |||
Ballast | 2.8 tons | |||
Sail area | 450 sq ft | |||
Designer | M. Griffiths | |||
Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | ||||
|
|
|
||
Cockler and Bawley | ||||
LOD (Plus bowsprit) | 24' 10" | |||
Thanks to David Riley for sending us these. Dating from 1950 all sheets here and give both the centreboard and the bilge keel version of the Cockler plus slightly deeper draught Bawley. Also there are 2 versions of Bermudan rig and gaff. |
LWL | 22' | ||
Beam | 8' | |||
Draught plate up and bilge | 2' 9" | |||
Bawley | 3' 6" | |||
Cockler plate down | 5' | |||
Ballast | 1.04 ton + 0.5 ton trim | |||
Sail area | 410 to 420 berm or Gaff | |||
Designer | M. Griffiths | |||
Copies of the drawings available on CD, £10.00 UK and £20.00. overseas | ||||
|
|
|
|
|
Levanter in Steel. Drawings for this design now available! |
Awaits details. | |||
When we have other copies of our plans available we will add details here. |
